森利威尔 开云手机平台3073

4-65V 输入, 3A, 高效异步降压转换器

DESCRIPTION

The 开云手机平台3073 is 3.0A buck converters with wide input voltage, ranging from 4V to 65V, which integrates an 260mΩ high-side MOSFET.

The 开云手机平台3073, adopting the peak current mode control, supports the Pulse Skipping Modulation (PSM) which assists the converter on achieving high efficiency at light load. The 开云手机平台3073 features programmable switching frequency from 100kHz to 2MHz with an external resistor.

The 开云手机平台3073 allows power conversion from high input voltage to low output voltage with a minimum 120ns on-time of switch MOS. The device offers fixed 2.5ms soft start to prevent inrush current during the startup.

The 开云手机平台3073 features external loop compensation to provide the flexibility to optimize either loop stability or loop response.

The 开云手机平台3073 provides cycle-by-cycle current limit, thermal shutdown protection, output over-voltage protection, output over load protection and input voltage under-voltage protection. The device is available in an ESOP8 package.

FEATURES

・Wide Input Range: 4V-65V

・Up to 3.0A Continuous Output Current

・Integrated 260mΩ High-Side MOSFET

・Low Quiescent Current: 110uA

・Pulse Skipping Mode (PSM) in light load

・Adjustable Frequency Up to 2MHz

・Peak current mode control

・Low Dropout Mode Operation

・Over-voltage , Over-current and Over-Temperature Protection

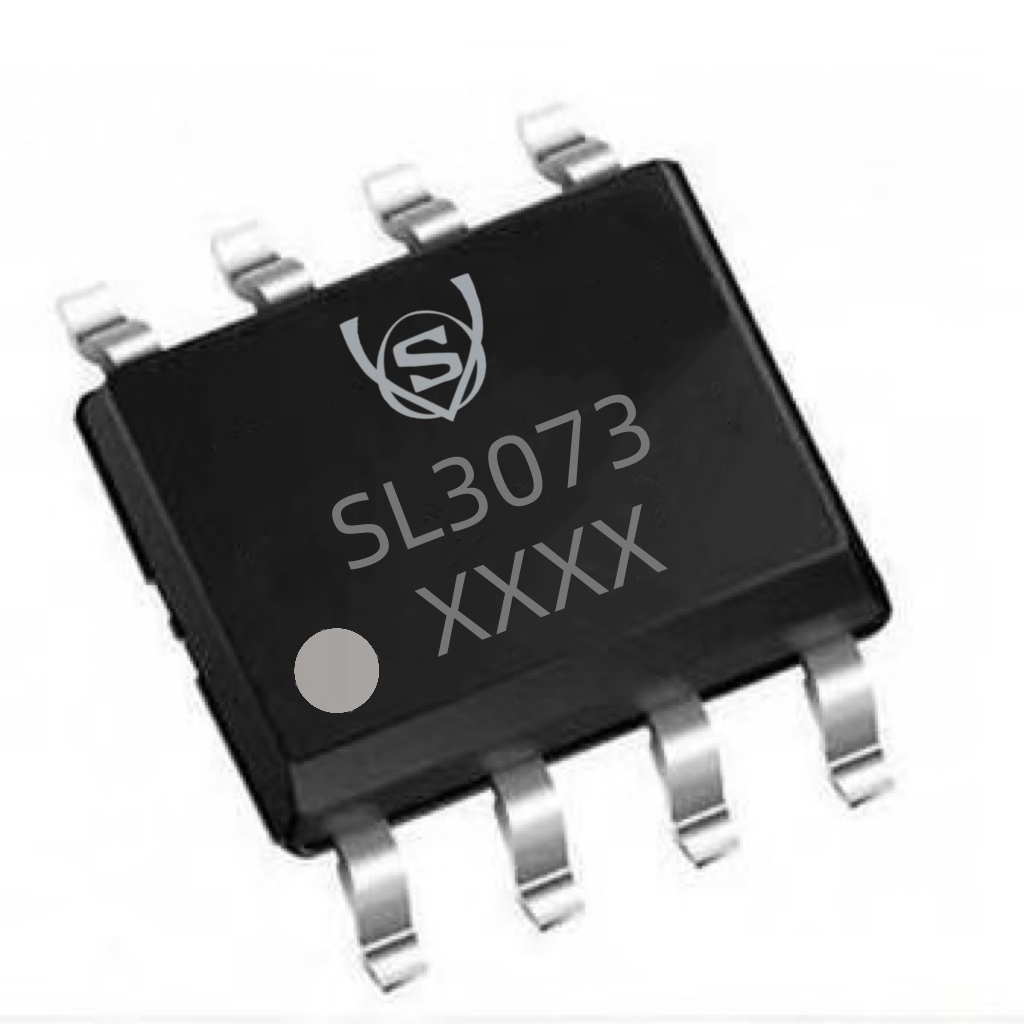

・Available in an ESOP-8 Package

APPLICATIONS

・12-V, 24-V, 48-V Industry and Telecom Power System

・Automotive System Power

・Industrial Automation and Motor Control

・High Voltage Power Conversion

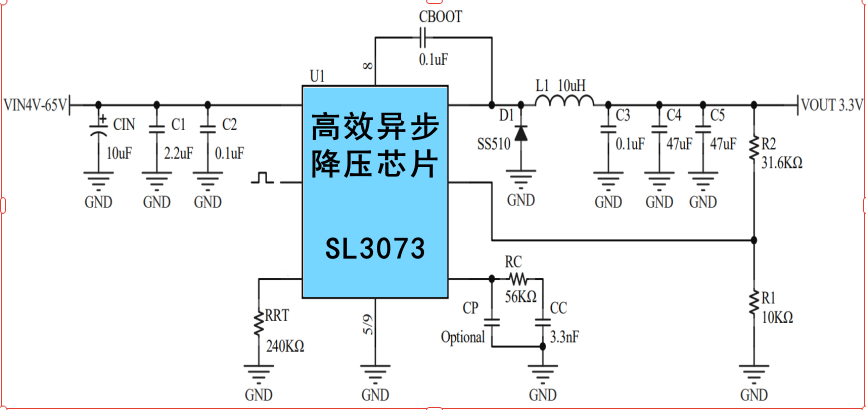

TYPICAL APPLICATION
